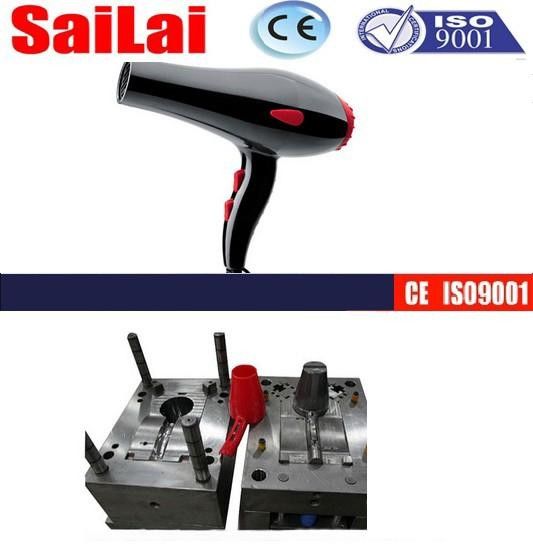

Automatic Injection Molding Machine Plastic Hair Dryer Making Machine

Automatic Injection Molding Machine Plastic Hair Dryer Making Machine

Product Details:

Place of Origin: Ningbo, China
Brand Name: HAIJIA
Certification: CE/ISO9001
Model Number: HJF360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 39077/piece
Packaging Details: Standard Export Package
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 5000 pieces per Year
Get Best Price Contact Now

Detail Information

Condition: New Automatic: Yes
Type: Plastic Injection Molding Machine Plastic Type: Thermoplastic
Style: Horizontal Warranty: 1 Year
Color: Customized Name: Injection Molding Machine
High Light:

Hair Dryer Injection Molding Machine

,

Plastic Hair Dryer Mold Making Machine

,

Hair Dryer Automatic Plastic Injection Machine

Product Description

Essential details
Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, EVA, HDPE, PE, LDPE, PE/PP
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
680mm
Distance between Tie Bars(Height)(mm):
680mm
Plasticizing Capacity(g/s):
275
Mold Height(mm):
240 - 700 mm
Ejector Number:
15
Ejector Stroke(mm):
160 mm
Ejector Force(kN):
62 kN
Theoretical Shot Volume(cm³):
1128 cm³
Injection Rate (g/s):
275 g/s
Machine Type:
Hydraulic
Injection Weight (g):
1026 g
Screw Speed (rpm):
0 - 180 rpm
Screw diameter (mm):
65 mm
Screw L/D Ratio:
21.2
Distance between Tie Bars:
680*680
Weight (KG):
12 kg
Type:
Preform Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
700 mm
Model Number:
HJF360
Brand Name:
HAIJIA
Power (kW):
17.25 kW
Warranty:
1.5 years
Key Selling Points:
Easy to Operate
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Showroom Location:
Turkey, United States, Saudi Arabia, Indonesia, Mexico, Russia, Algeria, Bangladesh
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1.5 years
Core Components:
Motor, Pump, PLC, Pressure vessel, Engine
Structure:
Horizontal Injection Molding Machine
Usage::
Electric Parts
Machine Weight::
12T
Clamping Force::
3600KN
Space Between Tie Bar:
680mm*680mm
Pump Motor Power:
37KW
Oil Tank Capacity:
620L
Machiner Dimensions(mm):
6.3m*1.9m*2.4m
Injection Rate:
275g/s
Injection Weight:
1026g
Supply Ability
Supply Ability
5000 Set/Sets per Year
Packaging & delivery
Packaging Details
Standard Export Package
Port
NINGBO
Lead time:
Quantity(sets) 1 - 1 >1
Lead time (days) 35 To be negotiated




HJF360 Injection Molding Machine

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machines operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.



Safety helmet  making 360 ton  injection molding machine



SPECIFICATION HJF360
Screw Type A B C D
Screw Diameter Mm 60 65 70 75
Screw L/D Ration L/D 22.6 21.2 19.4 18.5
Shot Size(Theoretical) cm3 960 1128 1306 1480
Injection Weight(PS) g 873 1026 1180 1346
Injection Rate g/s 239 275 328 420
Injection Pressure MPa 213 183 160 146
Screw Speed rpm 0~180
Clamping Force KN 3600
Opening stroke Mm 700
Space Between Tie Bars mm 680*680
Max.Mold Height mm 670
Min.Mold Height mm 240
Ejector Stroke mm 160
Ejector Tonnage KN 62
Max.Pump Pressure MPa 16
Pump Motor Power KW 37
Heater power KW 17.25
Machine Dimension(L*W*H) M 6.3*1.9*2.4
Machine weight T 12
Oil Tank Capacity L 620


The Machine Introduction

The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.



Some of the important features:

Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.



Auxiliary Equipment for Injection Molding Machines

Auto loader,Chiller,Crusher,Cooling Tower,Mixer,Hopper Dryer,water pump,robot, dehumidifier etc.if you need any other equipment,please feel freely contact with us.Thanks very much.

Safety helmet  making 360 ton  injection molding machine



Auxiliary Equipment for Injection Molding Machines

Auto loader,Chiller,Crusher,Cooling Tower,Mixer,Hopper Dryer,water pump,robot, dehumidifier etc.if you need any other equipment,please feel freely contact with us.Thanks very much.

Safety helmet  making 360 ton  injection molding machine

FAQ



Q1. What is the warranty for the injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.

Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
A2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day


Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual
Tool box,Lubricate Oil,Sealing,Filter etc.


Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A4:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.

Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.

Q6:If i Need Green Color machine,can you do it for us?
Q6: Yes,please give us the color sample.So we can do it for you.
