Thermoplastic Auto Injection Molding Machine For Plastic Cap With Safe Ring

Thermoplastic Auto Injection Molding Machine For Plastic Cap With Safe Ring

Product Details:

Place of Origin: Ningbo, China
Brand Name: HAIJIA
Certification: CE/ISO9001
Model Number: HJF180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 16500/piece
Packaging Details: Standard Export Package
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 5000 pieces per Year
Get Best Price Contact Now

Detail Information
Plastic Type: Thermoplastic Injection Weight: 274-388g
Style: Horizontal Clamping Force: 1000-13000KN
Condition: New
High Light:

Plastic Cap Injection Molding Machine

,

Thermoplastic Auto Injection Molding Machine

,

Plastic Cap Mold Machine 42mm

Product Description

Injection Molding Machine HJF180



Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

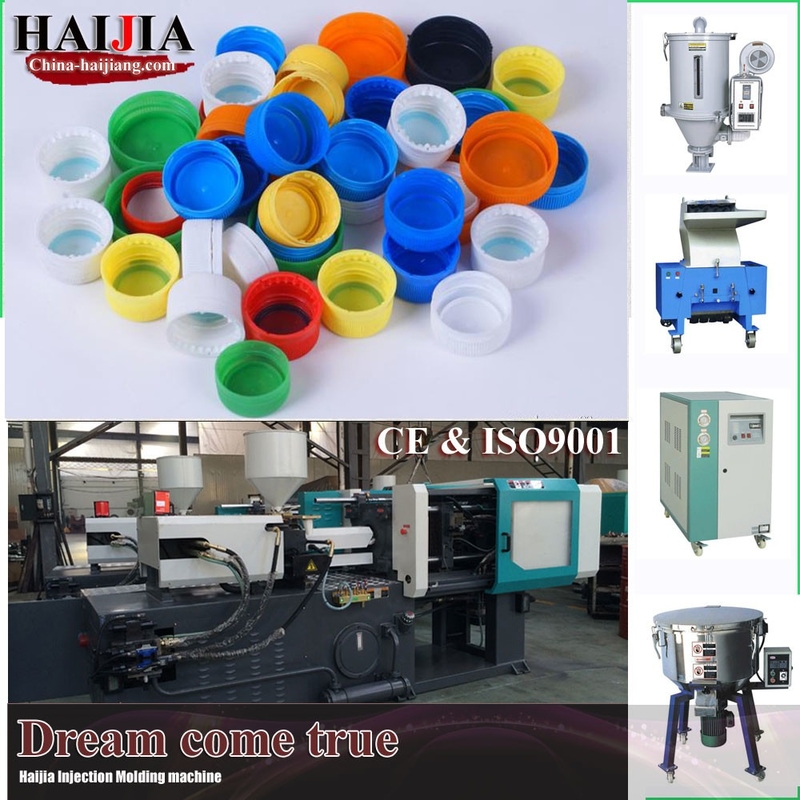

Thermoplastic Auto Injection Molding Machine For Plastic Cap With Safe Ring 0

SPECIFICATION HJF180
Screw Type A B C
Screw Diameter Mm 42 45 50
Screw L/D Ration L/D 22.5 20 18.8
Shot Size(Theoretical) cm3 304 349 431
Injection Weight(PS) g 274 314 388
Injection Rate g/s 108 128 158
Injection Pressure MPa 202 159 140
Screw Speed rpm 0~185
Clamping Force KN 1800
Opening stroke Mm 450
Space Between Tie Bars mm 480*480
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector Stroke mm 130
Ejector Tonnage KN 45
Max.Pump Pressure MPa 16
Motor Power KW 19.2
Heater power KW 7.5
Machine Dimension(L*W*H) M 5.1*1.4*1.9
Machine weight T 5.5
Oil Tank Capacity L 240



















Haijiang Machinery Main configuration

Standard machinery

PLC PORCHESON
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)

Servo machinery

PLC PORCHESON
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)

SPARE PARTS( FOR FREE)

1. Mold clamping with bolts: 8PCS, 2. Nozzles: 1PCS,
3. Toolbox: 1SET, 4. Heating Band: 2PCS,
5. Lubrication Oil: 1 Bucket 6. Limit Switch: 2PCS,
7. Hexagon Wrench: 1SET, 8. Thermocouple: 2PCS
9. Seal Ring: 2PCS, 10. Machine shockproof pads: 6PCS,
11. Vise: 1PCS, 12. Power socket for auxiliary machines: 2PCS,
13. Wrench: 1PCS, 14. Screwdriver: 2PCS,

Note: Different machines, the quantity of free accessories is different.
